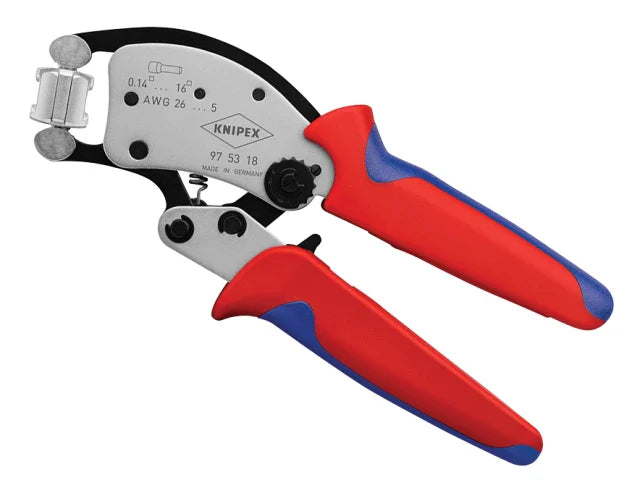

Knipex Twistor16® Self-Adjusting Crimping Pliers 200mm

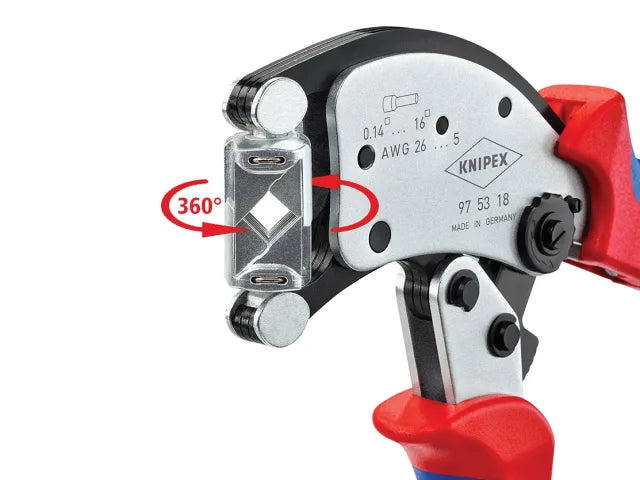

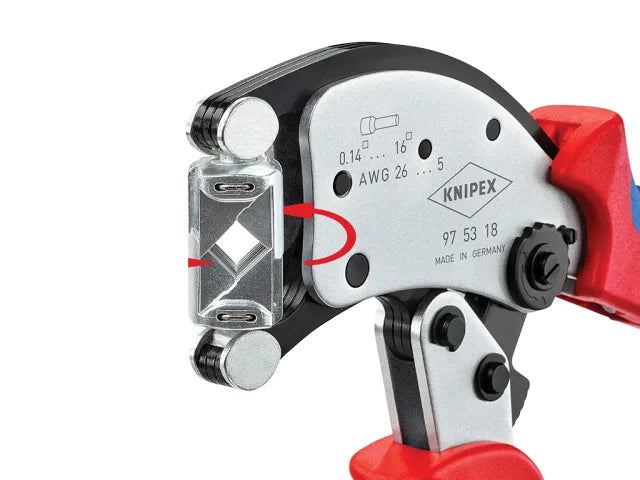

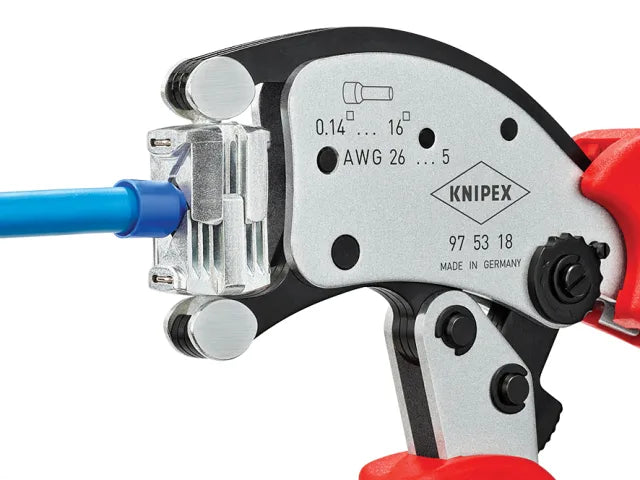

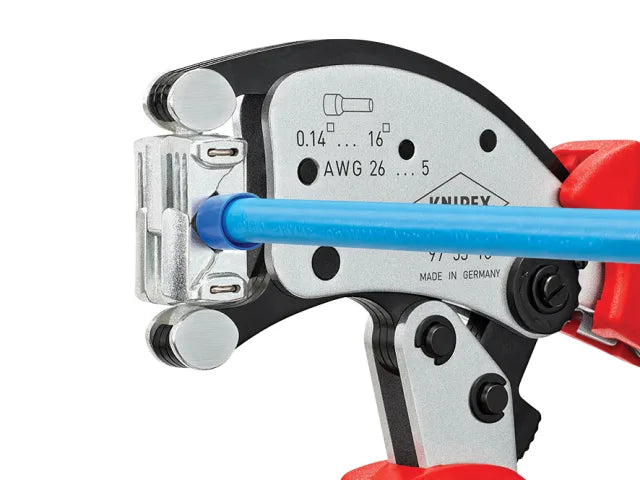

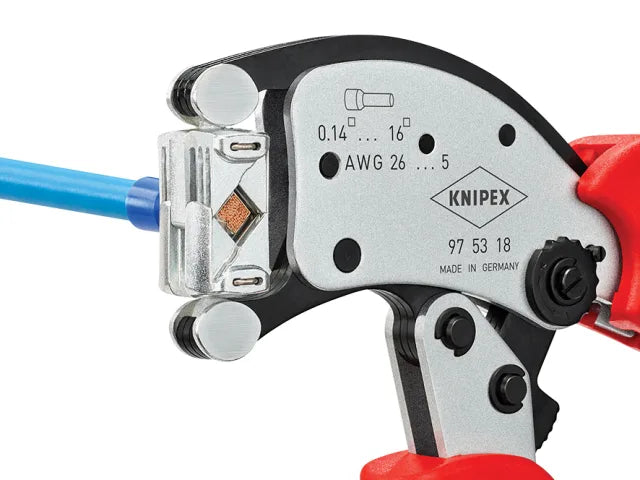

Knipex Twistor16® Self-Adjusting Pliers for crimping wire end sleeves according to DIN 46228 parts 1 + 4. Its square crimp profile has a high-capacity range of 0.14 to 16mm². The 360° rotatable crimping die has 8 tactile locking positions. Self-adjustment to the desired size of wire end sleeve. No crimping errors due to using the wrong crimping die or to an incorrect setting.

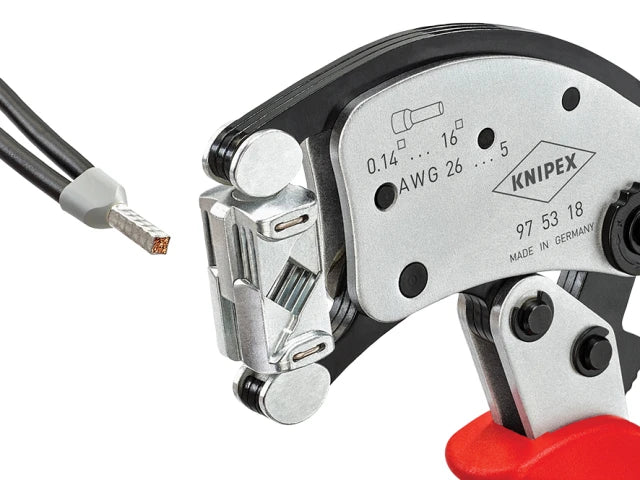

Made from special quality, oil-hardened, chrome vanadium electric steel. With a slim head for increased accessibility and a lightweight design for operator comfort. Repetitive, high crimping quality due to integral lock (self-releasing mechanism) and the precisely calibrated pressure, this is done in the factory. Crimping of twin wire end sleeves up to 2 x 6mm² possible.

Specifications:

Capacity: 0.14-16.0mm² or 26-5 AWG.
Overall Length: 200mm.
Weight: 478g.

These Twistor16® Self-Adjusting Crimping Pliers are supplied loose.
