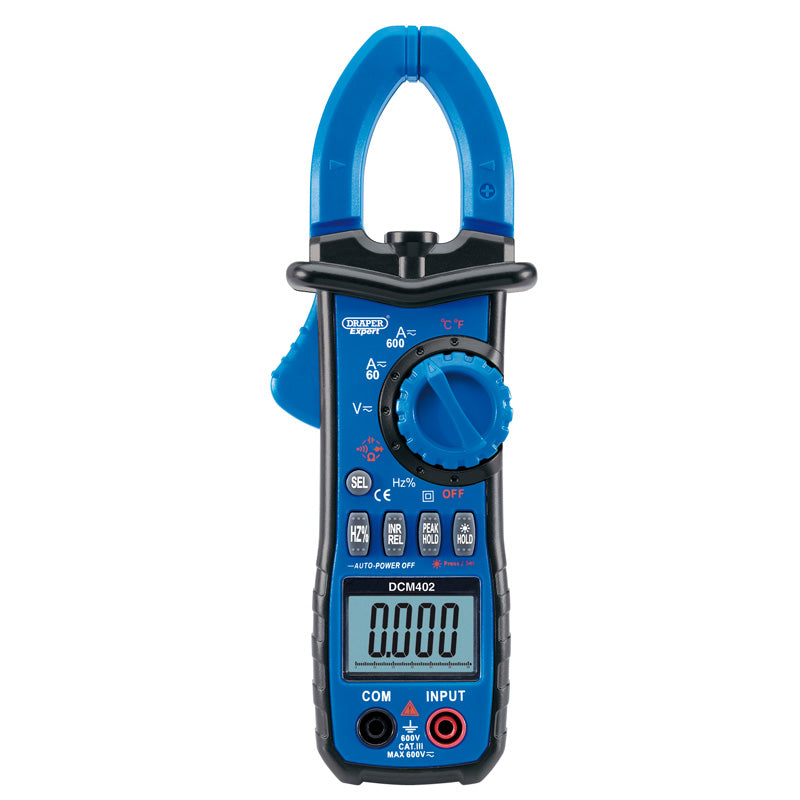

Draper Digital Clamp Meter (Auto-Ranging)

Expert Quality, auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and
temperature testing. Maximum jaw-opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light. Supplied with test leads, temp probe, case and 3 x AAA batteries.

DC Voltage   600mV/6V/60V/600V
AC Voltage   6V/60V/600V
DC Amps      60A/600A
AC Amps      60A/600A
Resistance   600ohms/6kohms/60kohms/6Mohms/60Mohms
Capacitance   999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
Frequency   100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
Temp   -50 to 300ºC
Battery   3 x AAA (supplied)
